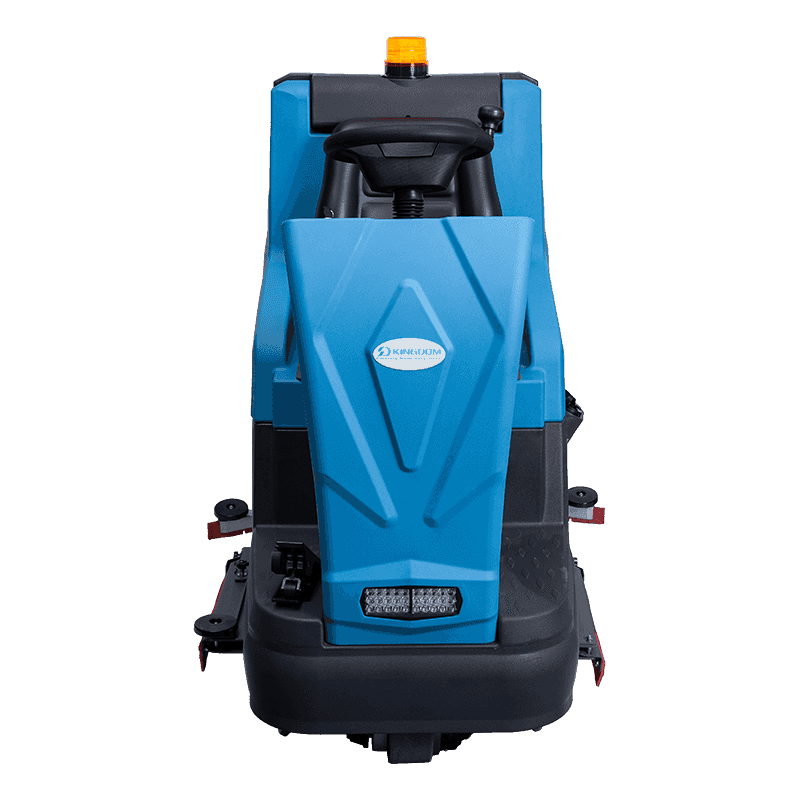

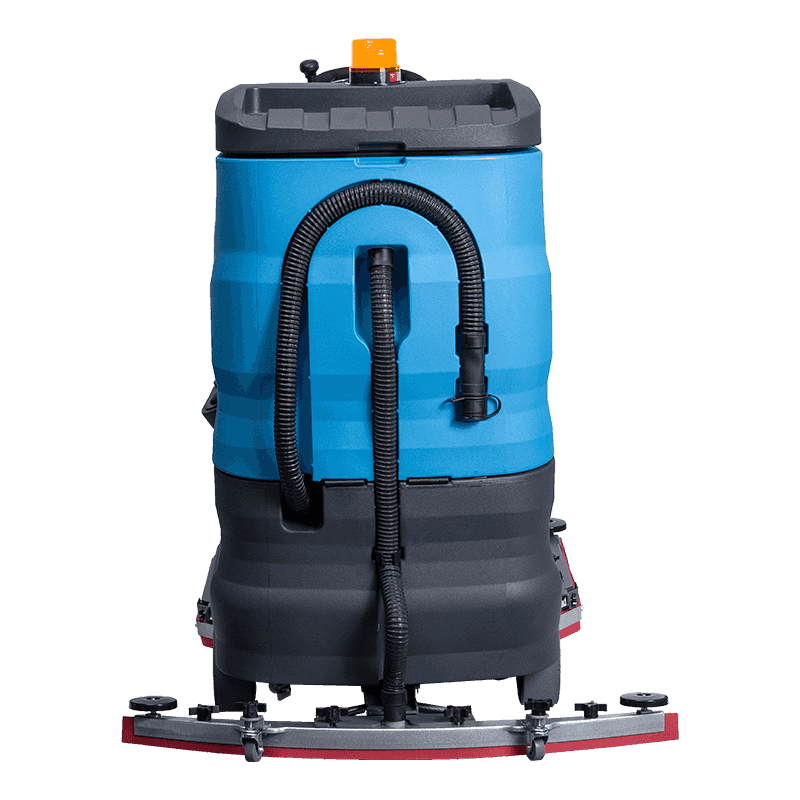

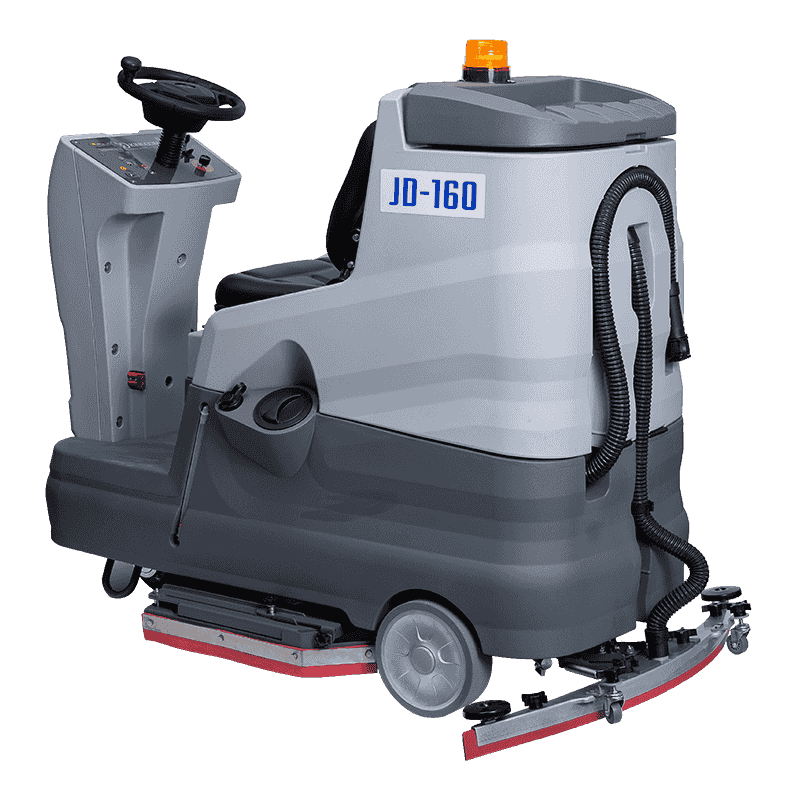

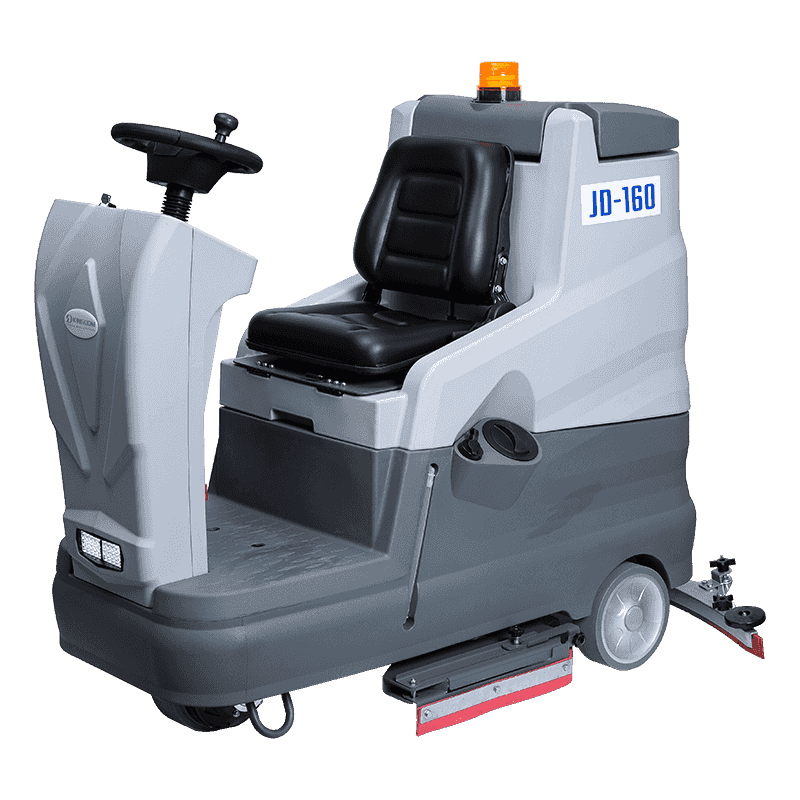

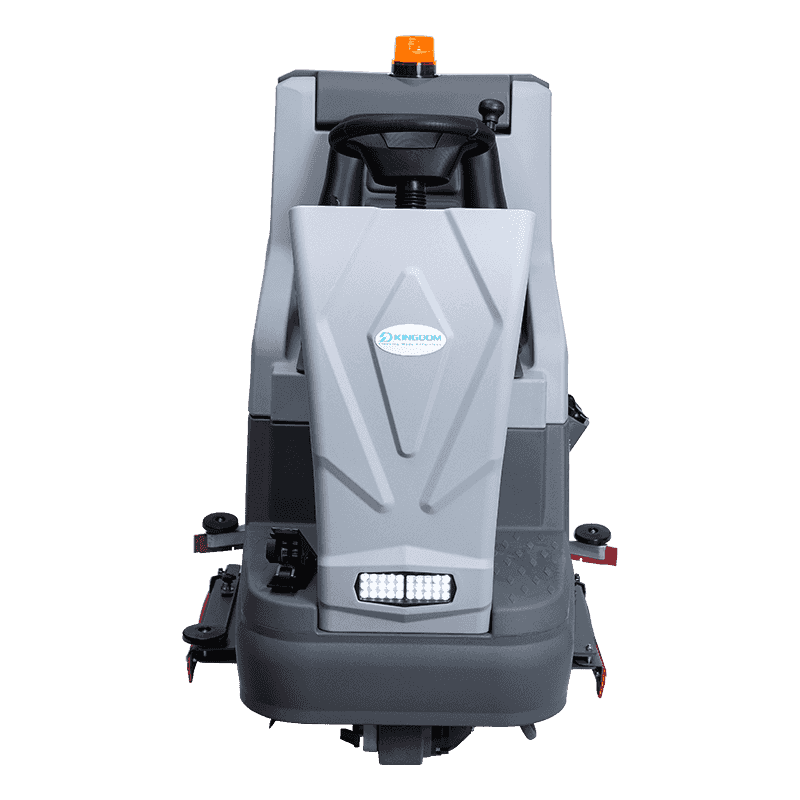

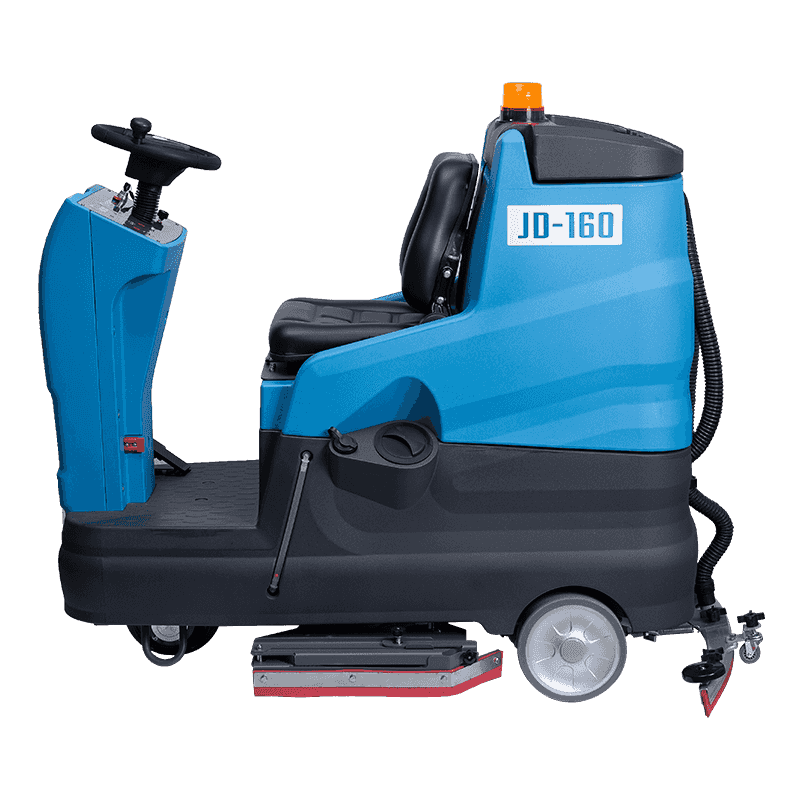

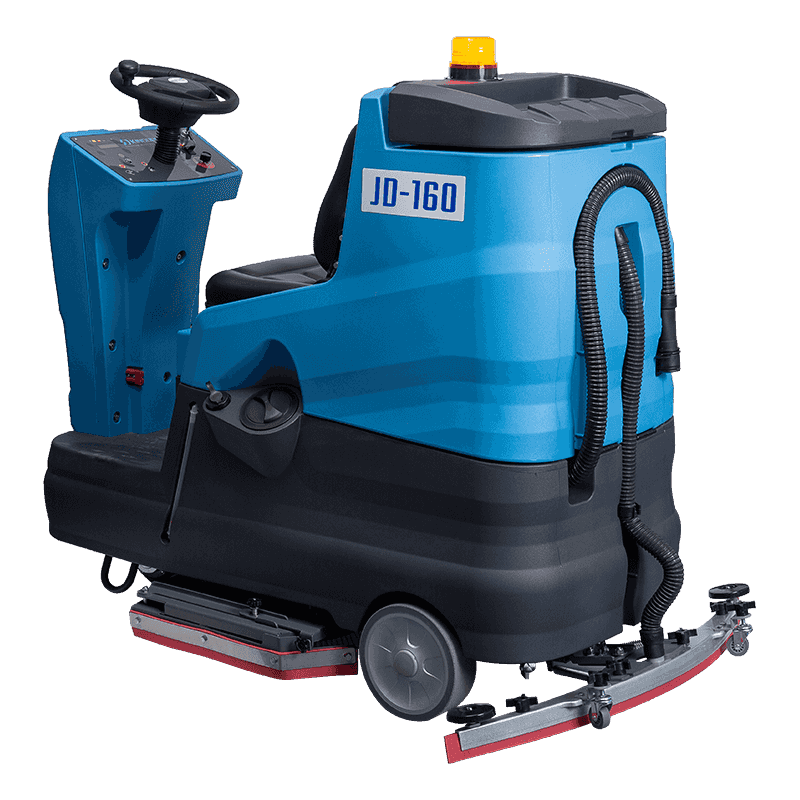

JD160 Electric Ride-on Commercial Floor Scrubber Machine

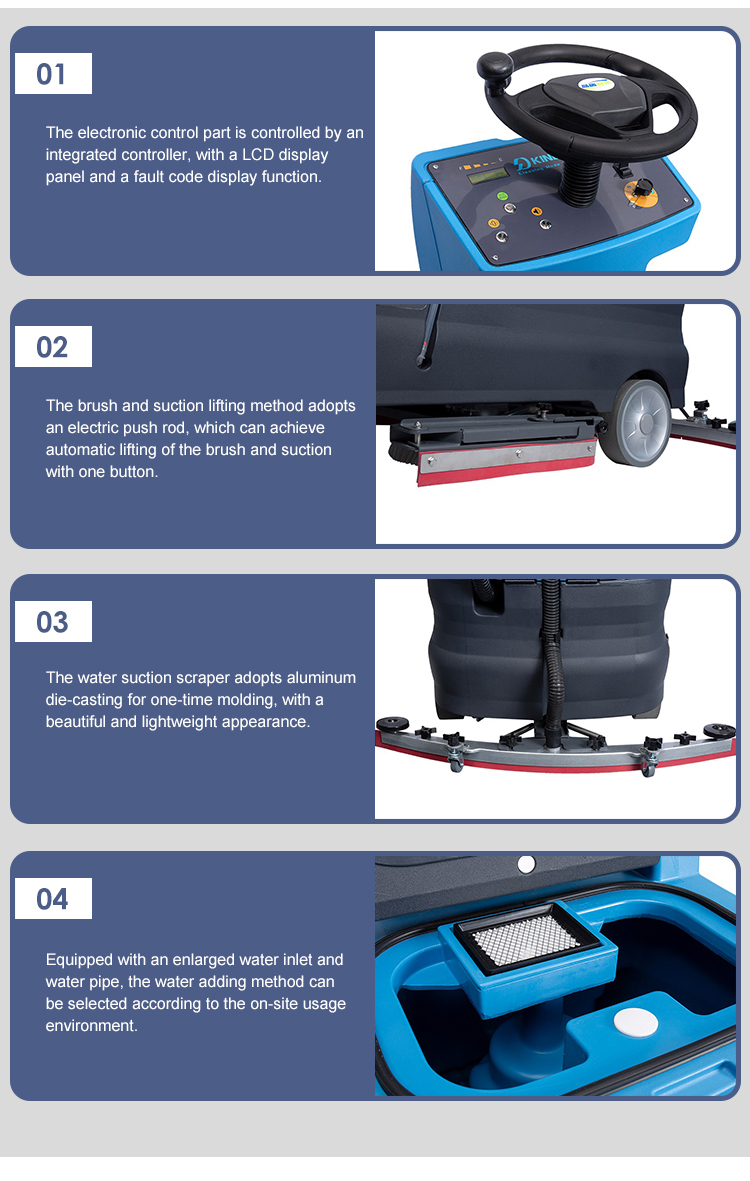

The JD160 floor scrubber has a 160L clean water tank paired with a 170L sewage tank, an 860MM brush plate cleaning width and a 1080MM water suction assembly cleaning width, which leaves no residue after cleaning. Compared with the same parameter equipment, it has a larger water tank capacity, a longer cleaning time and higher cleaning efficiency. The clean water tank is equipped with a large water inlet and a hose directly connected to the water inlet. The brush head and water suction assembly of the machine body are designed with fully automatic lifting and lowering, with a high degree of semi-automation. The control panel uses a liquid crystal display panel, which integrates ECO function, fault code display function, etc. The machine has a large total weight, a low center of gravity, an adjustable driving speed, and safer driving. The one-piece die-cast water suction assembly and quick-install and quick-disassemble water suction strip design are energy-saving, time-saving and cost-reducing. The machine has a large capacity, high cleaning efficiency, is easy to operate, has good stability and high safety performance.
Contact Us WhatsApp
PREV：No previous articleNEXT：JD75S Medium-Sied Ride-on Double Brush Floor Scrubber
  • Product Information

  • 1. Full LCD control panel.

    2. Large capacity water tank.

    3. Semi-automatic operation.

    4. High cleaning efficiency.

    5. Patented design of water absorption assembly, easy to replace.

    6. Low cost of use, high cost performance of the whole machine.

    7. Adjustable running speed of the whole machine, low center of gravity, good safety.

  • Products Applications

  • Shopping malls, supermarkets, office buildings, high-speed rail stations, airports, factories, garages, communities, schools, hospitals, and municipal squares.

  • Product Parameters
  • Name JD160
    Number JD160
    Rated voltage DC24V
    Working efficiency 5600M2/H
    Working width 860MM
    Soueegee width 1080MM
    Brush diameter (Quantity) 430MM
    Brush speed 150RPM
    Brush motor 2*550W
    Brush pressure 30KG
    Vacuum motor 600W Level 3
    Traction motor 650W rear drive
    Forward speed 0-7km/h adjustable
    Gradeability 15 degrees
    Solution tank capacity 160L
    Recovery tank capacity 170L
    Dimensions(L *W*H) 1730*870* 1370MM
    Battery 4*DC12V100AH
    Charging time 8-10H
    Continuous working time 3-4H
    Battery weight 128KG
    Machine weight without battery 298KG
    Accessories Needle Tray*2, Brush Tray*2, Charger*1, Battery*2, Accessory Pack*1, Manual*1

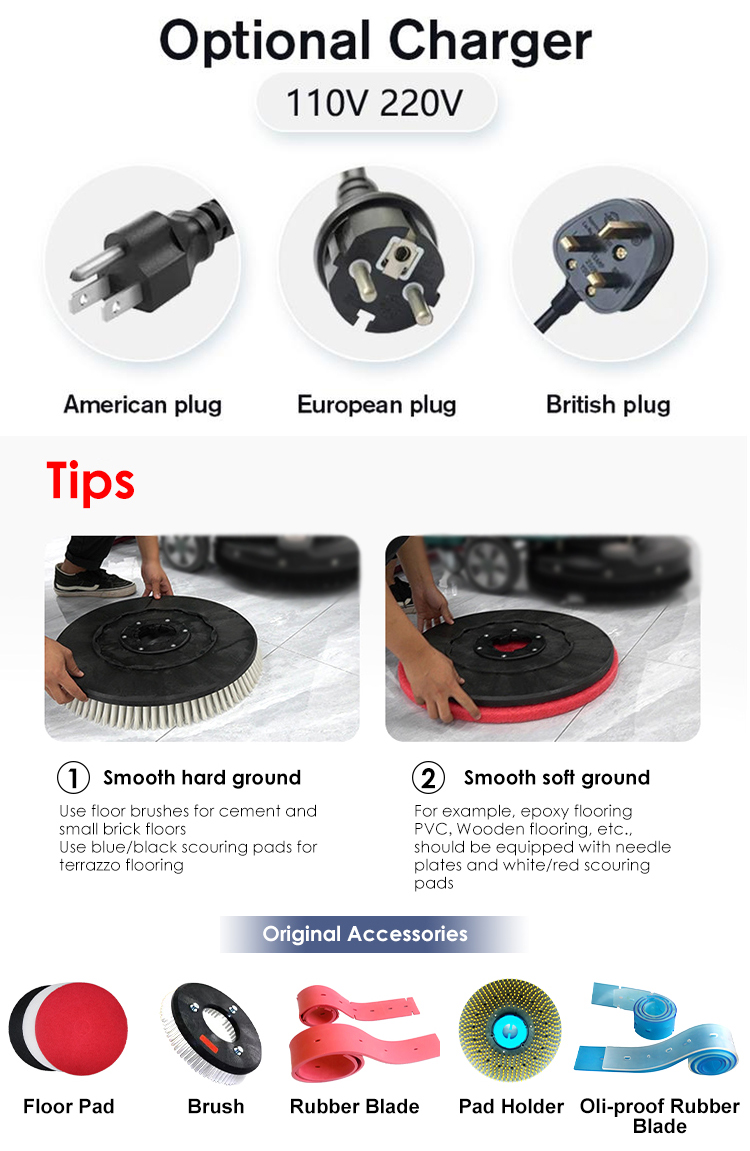

  • Product Details Picture
