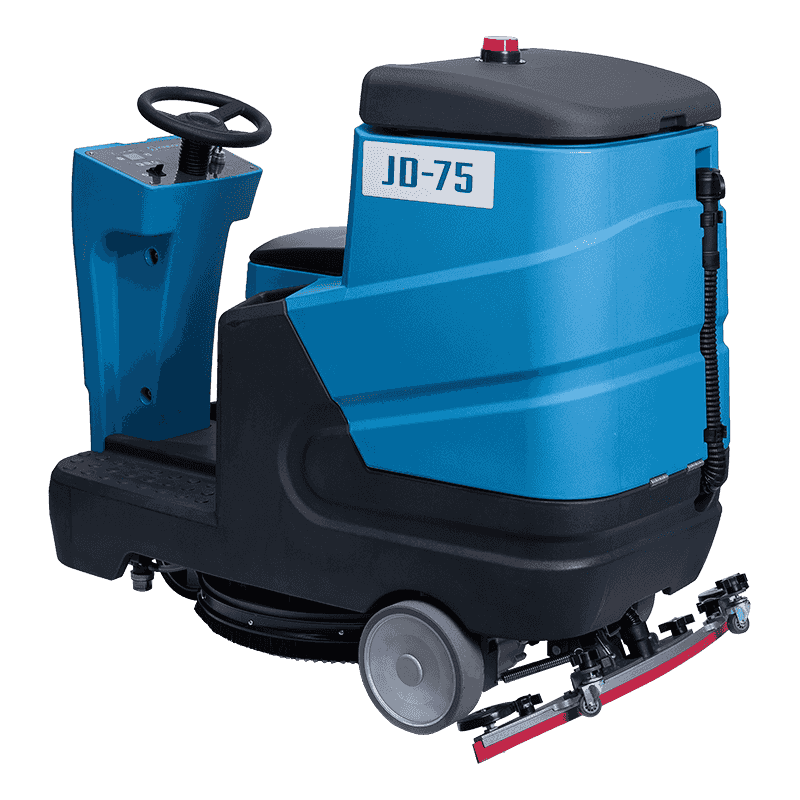

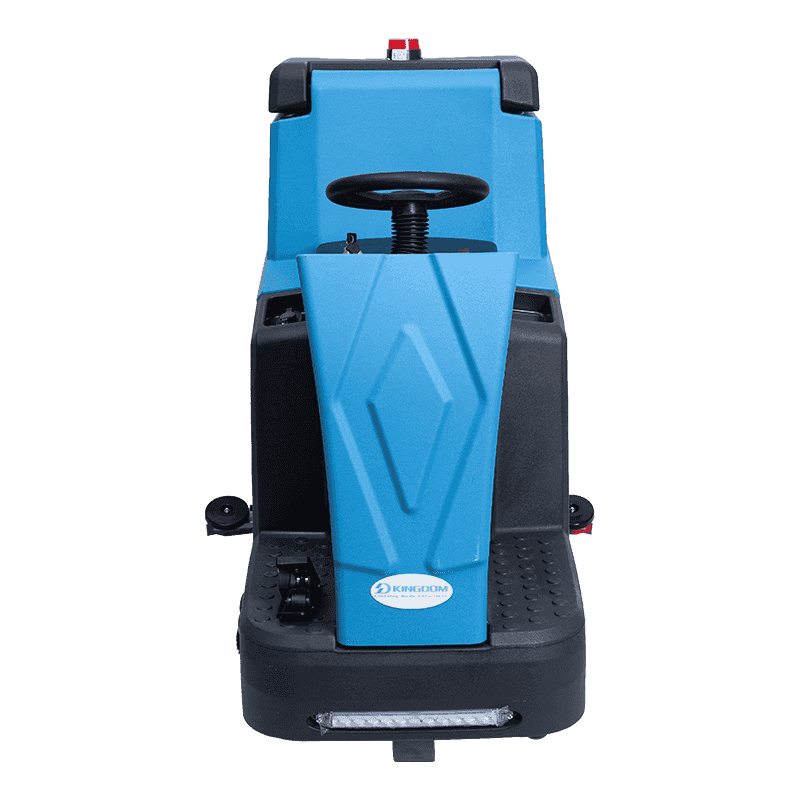

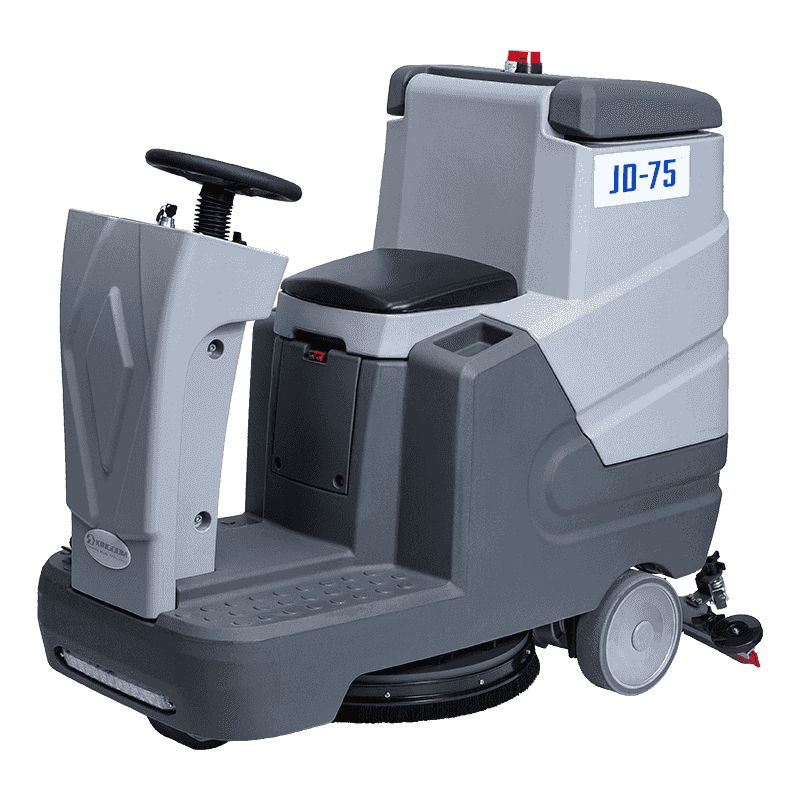

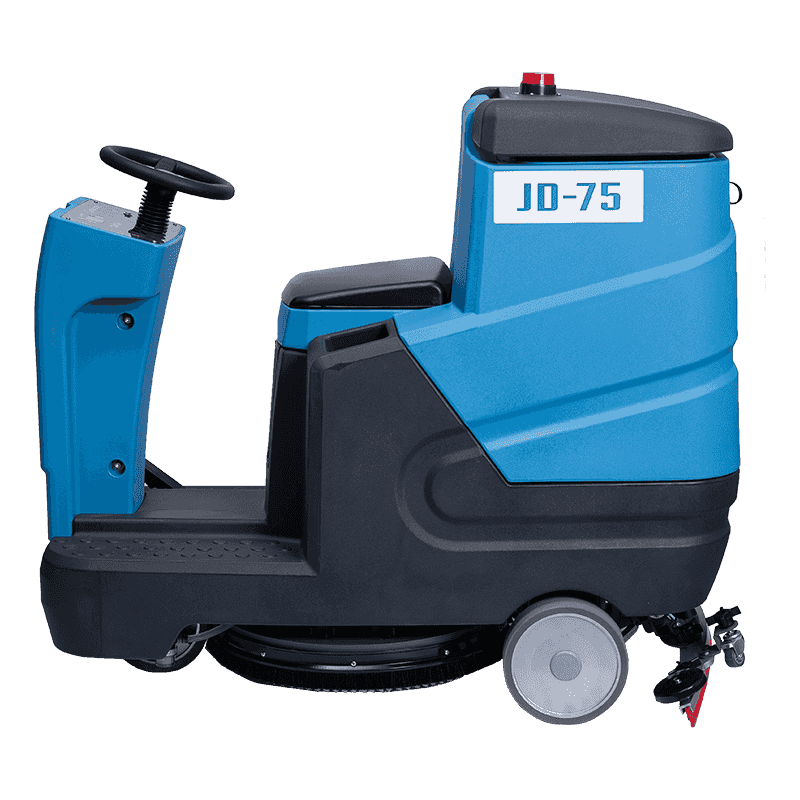

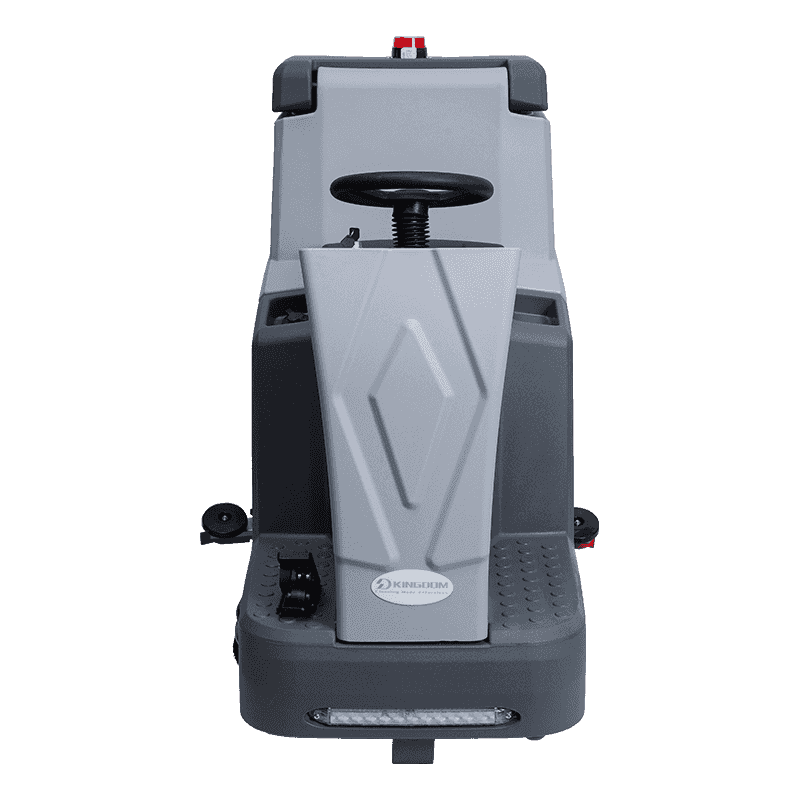

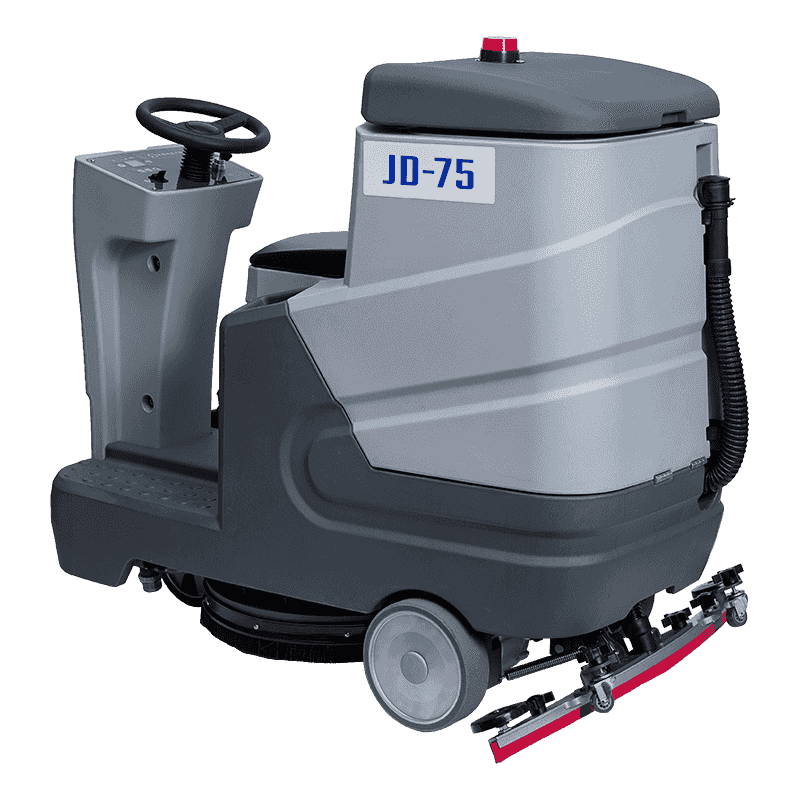

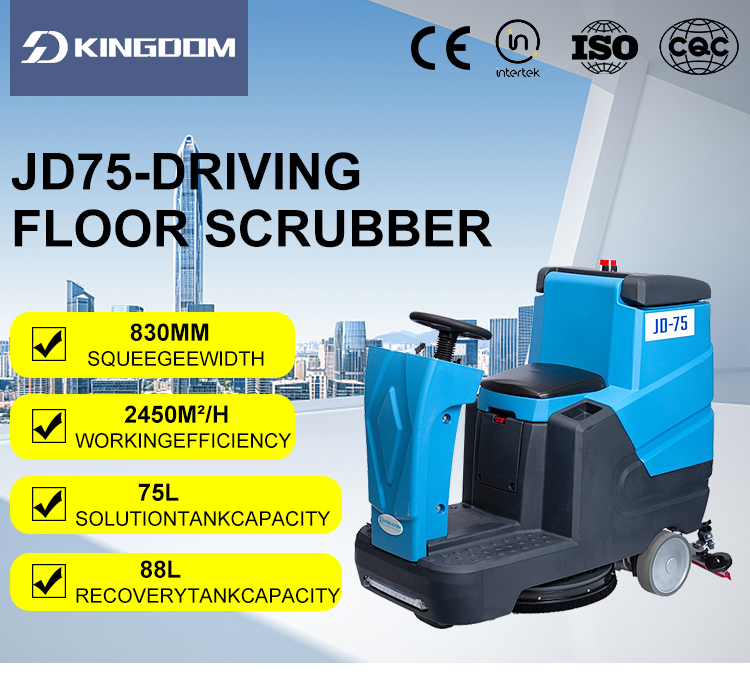

JD75 Ride-on Industrial Automatic Floor Scrubber

The JD75 floor scrubber has a 75L clean water tank paired with an 88L sewage tank. The working width of the water suction assembly is only 800MM. It has a more compact body cleaning design and passability in office buildings, supermarkets and other places. The clean water tank is equipped with a large water inlet and a hose directly connected to the water inlet. The brush plate and water suction assembly of the body are all designed with full-automatic lifting, eliminating manual operation. The control panel uses an LCD display panel, which integrates ECO function, fault code display function, etc., to meet multi-scenario operation. The water suction assembly is formed by one-piece die-casting, and the water suction strip adopts a quick-disassembly and quick-installation structure, which is easy to install and reduce replacement time. It is easy to use. The water suction strip adopts a patented special-shaped structure design, which ensures the water absorption effect while increasing the service life and reducing the cost of machine use.
Contact Us WhatsApp
PREV：JD75S Medium-Sied Ride-on Double Brush Floor ScrubberNEXT：No next article
  • Product Information

  • 1. Simple operation interface.

    2. Compact design width and good passability.

    3. Semi-automatic operation.

    4. High cleaning efficiency.

    5. Patented design of water absorption assembly for easy replacement.

    6. Variable speed regulation for high safety.

  • Products Applications

  • Shopping malls, supermarkets, office buildings, high-speed rail stations, airports, factories, garages, communities, schools, hospitals, and municipal squares.

  • Product Parameters
  • Name JD75
    Number JD75
    Rated voltage DC24V
    Working efficiency 2450M2/H
    Working width 550MM
    Soueegee width 830MM
    Brush diameter (Quantity) 550MM
    Brush speed 150RPM
    Brush motor 550W
    Brush pressure 30KG
    Vacuum motor 500W
    Traction motor 500W rear drive
    Forward speed 0-6km/h adjustable
    Gradeability 15 degrees
    Solution tank capacity 75L
    Recovery tank capacity 88L
    Dimensions(L *W*H) 1290*620* 1470MM
    Battery 2*DC12V120AH
    Charging time 8-10H
    Continuous working time 3-4H
    Battery weight 70KG
    Machine weight without battery 145KG
    Accessories Needle Tray*1, Brush Tray*1, Charger*1, Battery*2, Accessory Pack*1, Manual*1

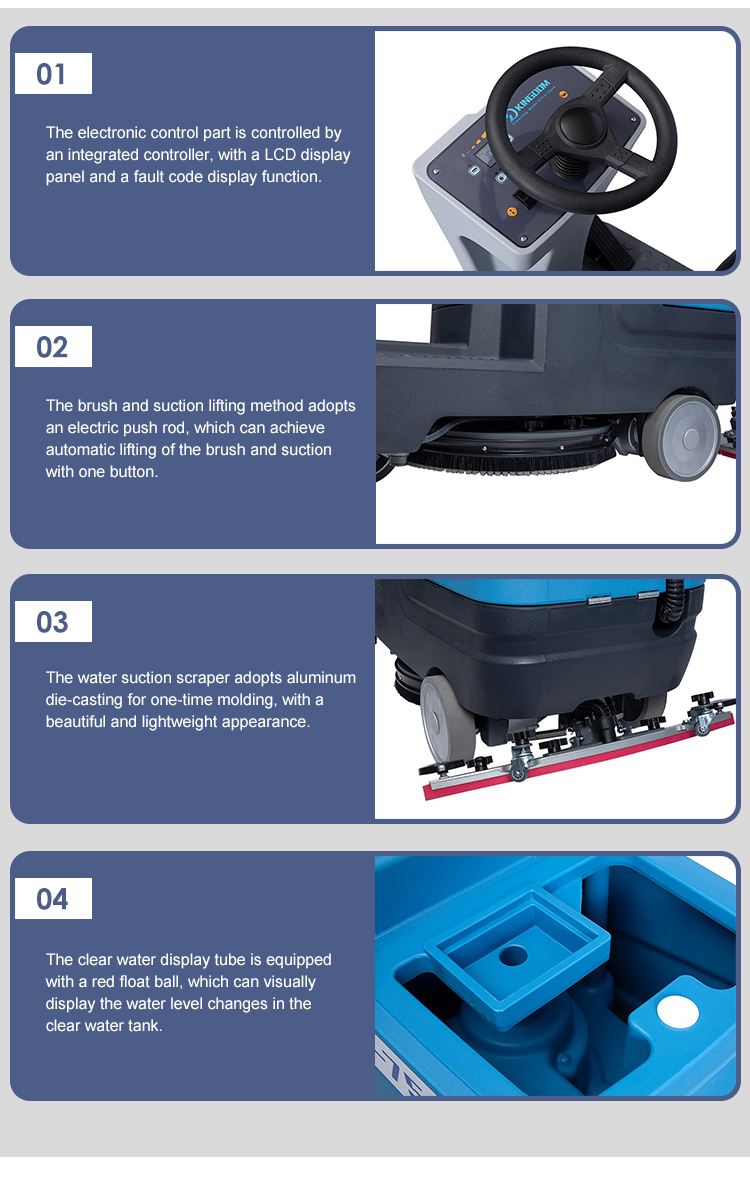

  • Product Details Picture
